Wall Mounted ZRA1 (Light) Jib Cranes – 220°

The light capacity 700 series wall mounted boom jibs utilize precision aluminum ZRA1 rail for a lightweight, easy to move boom up to 20 ft (6 m) long with 220 degree rotation. The boom features a running surface with less then 1% rolling resistance and is anodized for a smooth, clean, corrosive-free surface. The jib comes standard with a mounting plate assembly for mounting the jib to walls, existing building columns or any suitable surface. Any structure to which the Jib is mounted should be certified for this purpose by a registered structural engineer.

Request A Quote

Features

Ergonomic operation:

Lightweight ZRA1 Aluminum Boom offers the most ergonomic operation

Light capacity:

Capacities between 160 lb (72.6 kg) and 1000 lb (454 kg)

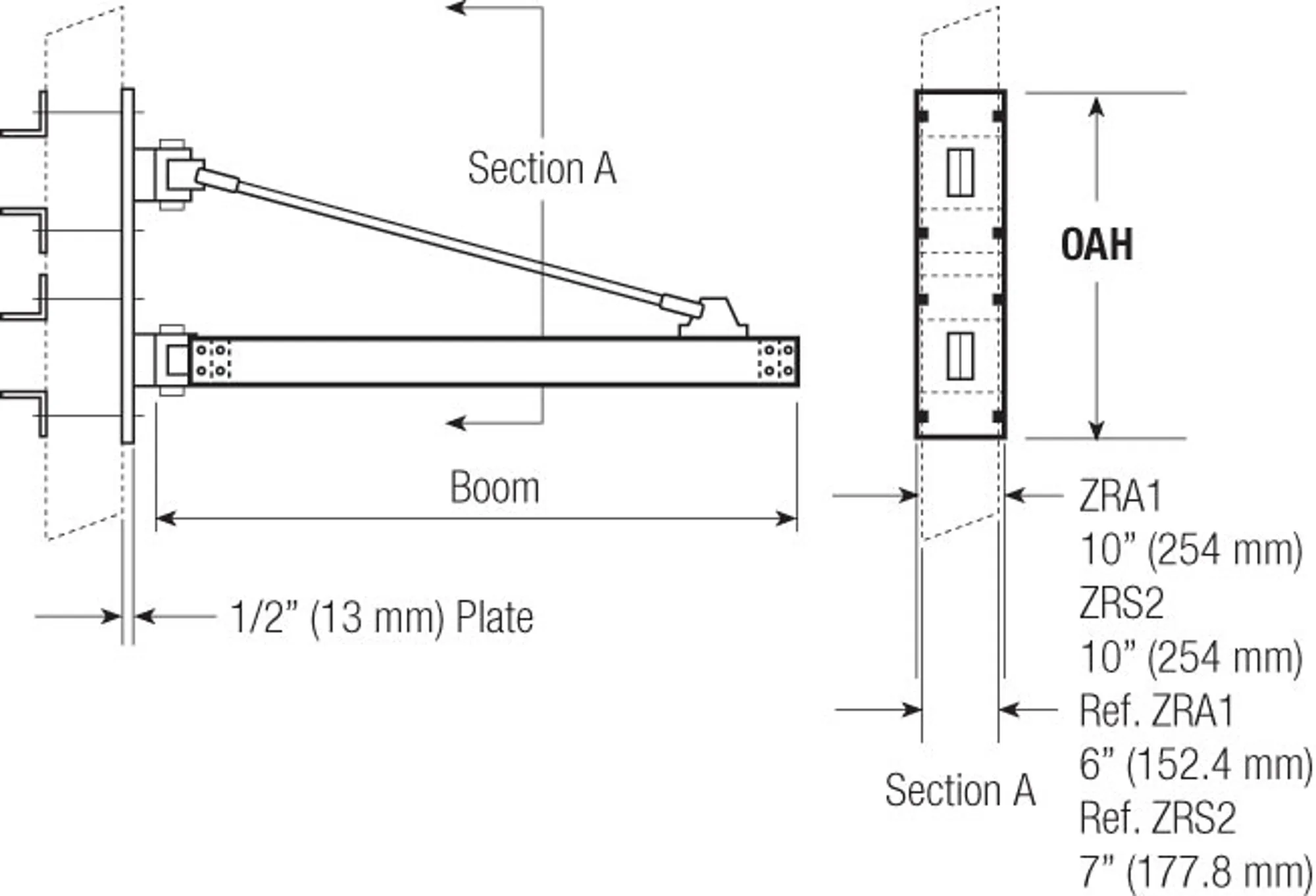

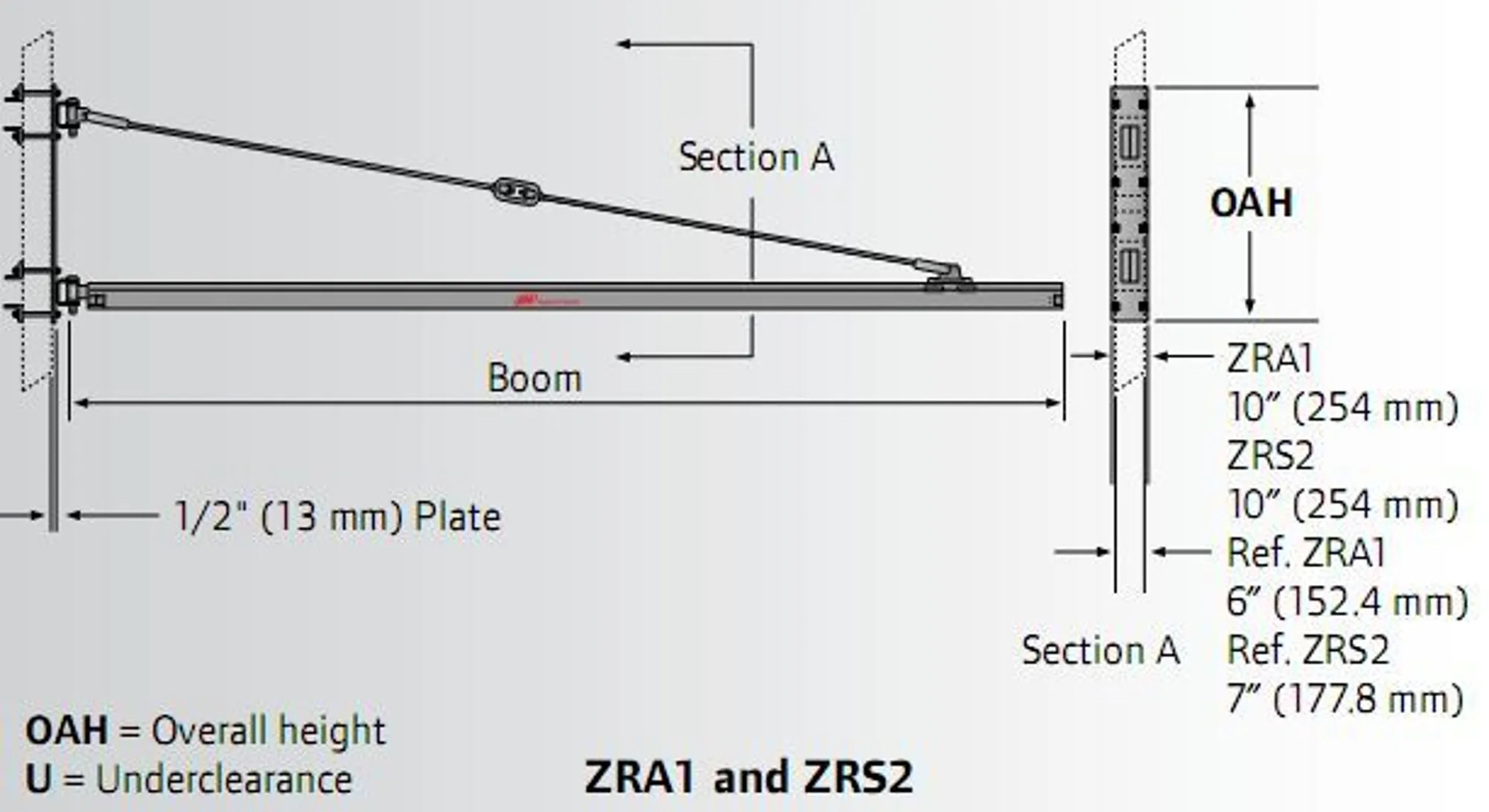

Model Specifications

Model Name	OAH = U + (mm)	OAH = U + (in.)	Weight (lbs)	Boom (m)	Capacity (kg)	Capacity (lbs)	Boom (ft.)	Weight (kg)
7016JA1W20	1118	44	208	6.1	72.6	160	20	94.5
7020JA1W18	1118	44	197	5.49	90.7	200	18	89.5
7026JA1W16	1118	44	186	4.88	117.9	260	16	84.5
7036JA1W14	1118	44	175	4.27	163.3	360	14	79.5
7050JA1W12	1118	44	164	3.66	226.8	500	12	74.5
7080JA1W10	1118	44	153	3.05	362.9	800	10	69.5
7100JA1W04	1118	44	120	1.22	453.6	1000	4	54.5
7100JA1W06	1118	44	131	1.83	453.6	1000	6	59.5
7100JA1W08	1118	44	142	2.44	453.6	1000	8	64.5
