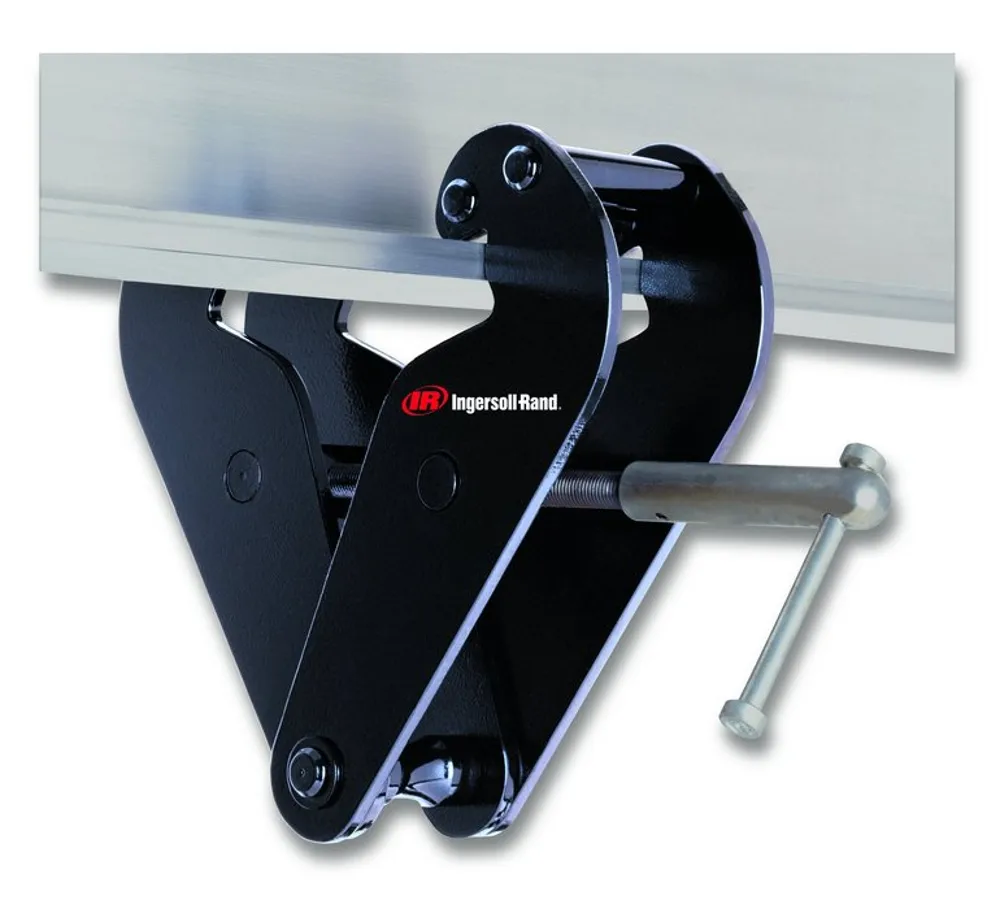

BCT Series Beam Clamps

1-10 metric ton Capacity Beam Clamps provide a temporary or permanent mount to a wide range of tapered or flat beams.
They are the ideal rigging device for lifting, pulling or suspending loads.
These units have been designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting ASME B30.16 and ASME B30.7.
Quick and simple installation is achieved without tools.
Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom.
The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.

Features

Quick installation by hand
Low-headroom design adjusts to fit a wide range of flat or tapered beams
Meets ASME B30.16 for use with powered or manual hoists
Each unit is serialized, supplied with a test certificate and manual
Metric rated for vertical lifting or in-line pulling at 2200 lbs (1000 kg) per ton

Model Specifications
