Features
Simple
- An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the user.

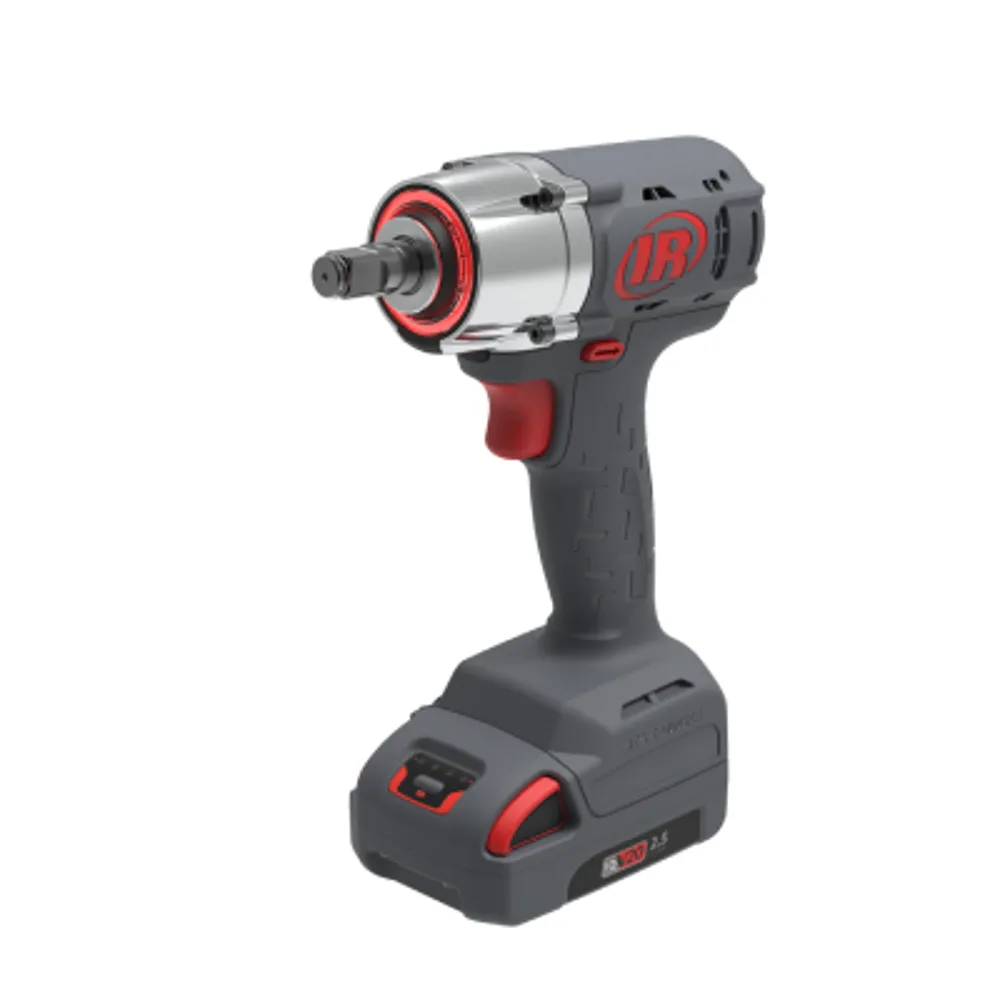

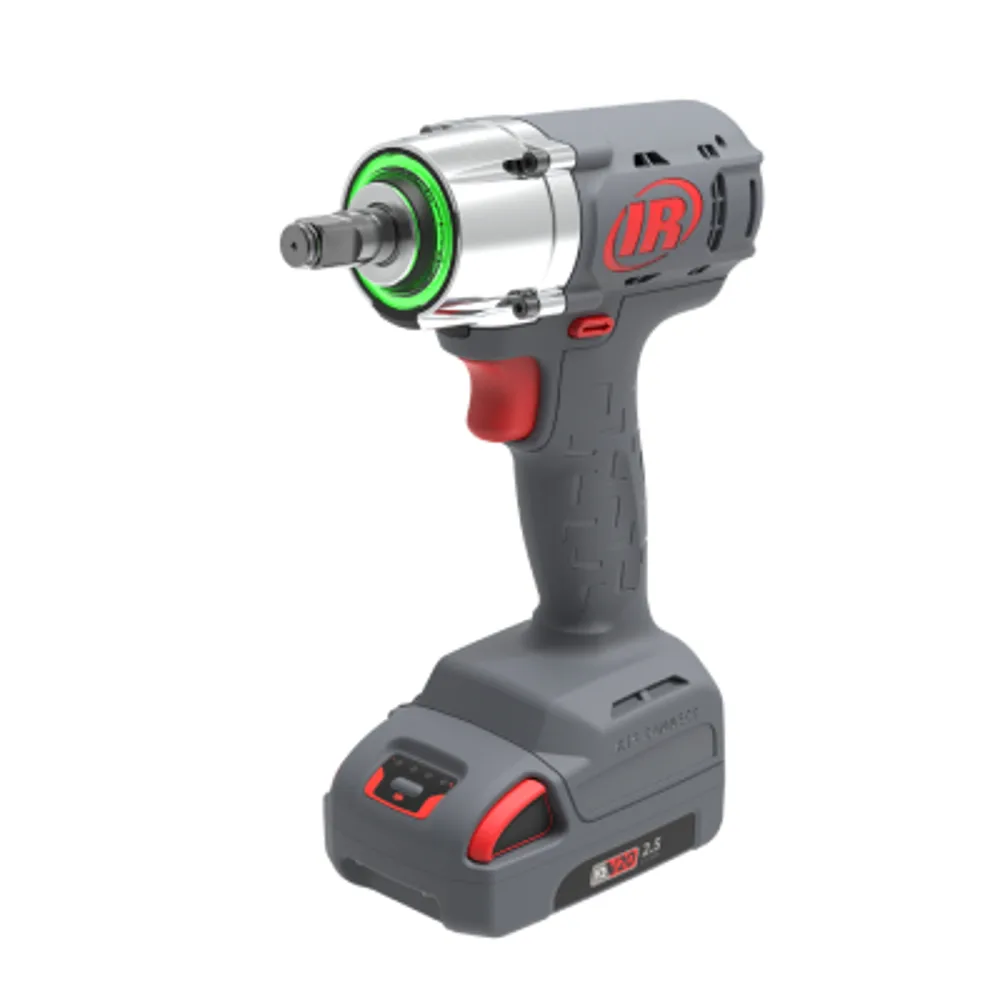

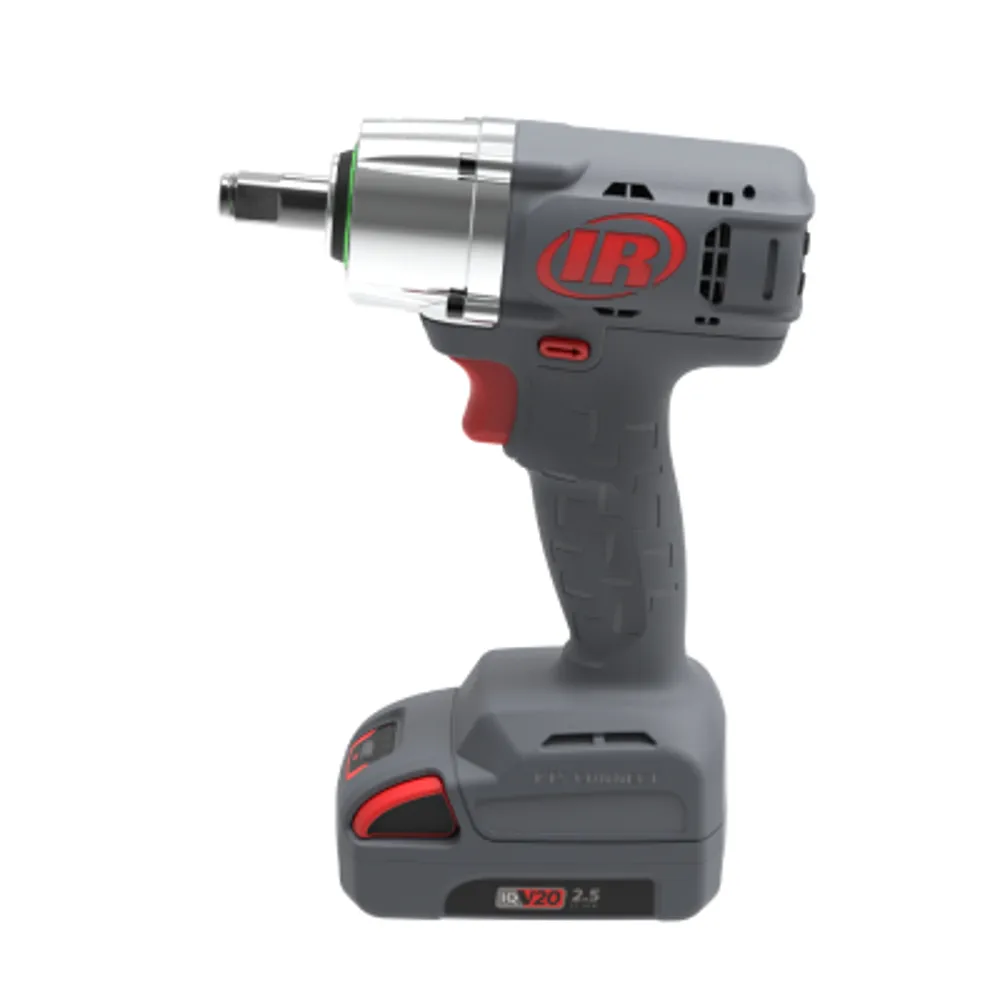

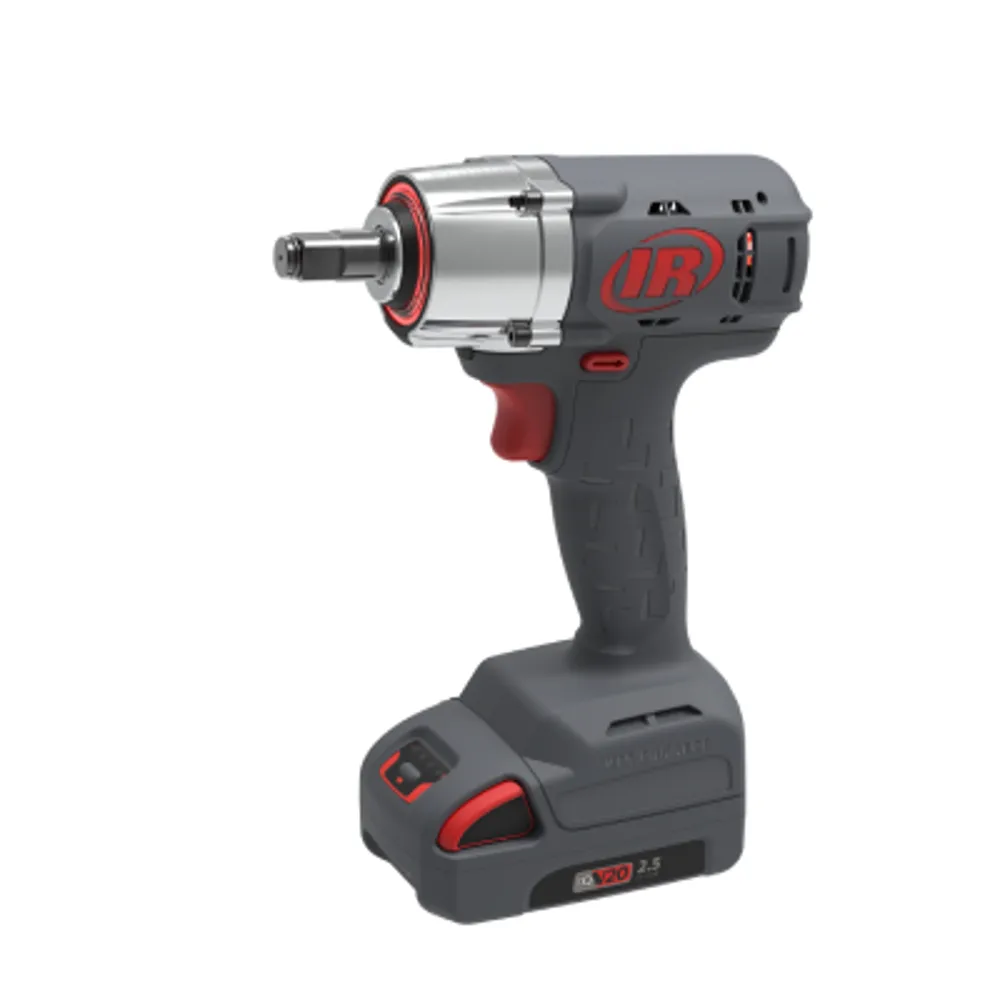

- The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the user on the cycle status.
- Basic setup via the tool display
- Advanced setup via INSIGHT™ Connect mobile app
- Expert setup via INSIGHTqcx™ MTC controller
Flexible
- Up to 8 Pset configurations reduce the need for multiple tools for different applications on the assembly line.
- Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations.
- 4 communication options available to adapt to evolving connectivity requirements.
Capable
- Proprietary torque control algorithm that delivers consistent, repeatable fastening every time.
- 40 torque settings and 7 flush detection levels to adapt to various application types.
- Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
Model Specifications
Model | Drive | Retainer Type | Fastener Size | Torque Range (in-lbs) | Torque Range (Nm) | Weight w/o Battery (lbs) | Weight w/o Battery (kg) | Length w/o Socket (in) | Length w/o Socket (mm) | Side to Center Distance (in) | Side to Center Distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
RTS025PQ4 | 1/4″ Hex | Quick-Change | M6-M8 | 70-220 | 8-25 | 2.3 | 1.05 | 6.1 | 155 | 1.2 | 30.5 |
RTS060PS6 | 3/8″ Square | Pin Detent | M8-M10 | 105-530 | 12-60 | 2.4 | 1.07 | 6.4 | 163 | 1.2 | 30.5 |
RTS060PH6 | 3/8″ Square | Hog Ring/Thru Hole | M8-M10 | 105-530 | 12-60 | 2.4 | 1.07 | 6.5 | 164 | 1.2 | 30.5 |
RTS060PS8 | 1/2″ Square | Pin Detent | M8-M10 | 105-530 | 12-60 | 2.4 | 1.09 | 6.7 | 169 | 1.2 | 30.5 |
RTS060PH8 | 1/2″ Square | Hog Ring/Thru Hole | M8-M10 | 105-530 | 12-60 | 2.4 | 1.09 | 6.7 | 170 | 1.2 | 30.5 |
RTS140PS8 | 1/2″ Square | Pin Detent | M10-M14 | 265-1240 | 30-140 | 2.4 | 1.1 | 6.7 | 169 | 1.2 | 30.5 |
RTS140PH8 | 1/2″ Square | Hog Ring/Thru Hole | M10-M14 | 265-1240 | 30-140 | 2.4 | 1.1 | 6.7 | 170 | 1.2 | 30.5 |
RTS225PS8 | 1/2″ Square | Pin Detent | M12-M18 | 530-2000 | 60-225 | 2.5 | 1.12 | 6.7 | 169 | 1.2 | 30.5 |
RTS225PH8 | 1/2″ Square | Hog Ring/Thru Hole | M12-M18 | 530-2000 | 60-225 | 2.5 | 1.12 | 6.7 | 170 | 1.2 | 30.5 |
ventional approaches are not viable.
Key technology areas include:
- Liquid-Driven Ejectors for Gas Compression : Using high-pressure liquid to entrain and compress low-pressure gas streams to elevated discharge pressures. These systems are widely deployed in flare gas recovery, vent gas recovery and vapour recovery, offering a simple, reliable and low-maintenance alternative to mechanical compressors.
- High-Pressure Gas-Driven Ejectors : Purpose-designed ejectors operating at elevated motive and discharge pressures for gas boosting, entrainment and recovery services. These designs require exceptional control of internal geometry, concentricity and materials — a core Transvac strength.
- Multiphase & Specialist Ejector Applications : Solutions engineered to handle mixed gas/liquid streams, variable compositions and transient operating conditions, often integrated into complex process recovery systems.
- Universal & Modular Ejector Designs : Ejectors designed with adaptability in mind, allowing internals to be modified or upgraded as process conditions evolve, extending asset life and reducing lifecycle cost.
