Features
Precise
- Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/- 10% accuracy, providing higher repeatability and consistent output.
- The QC Series Clutch Tool is equipped with a lockable, tamper-proof clutch that delivers up to 12 Nm of torque for various applications.
- Program RPM and other advanced tool settings via the Insight CONNECT mobile and desktop app.
Simple

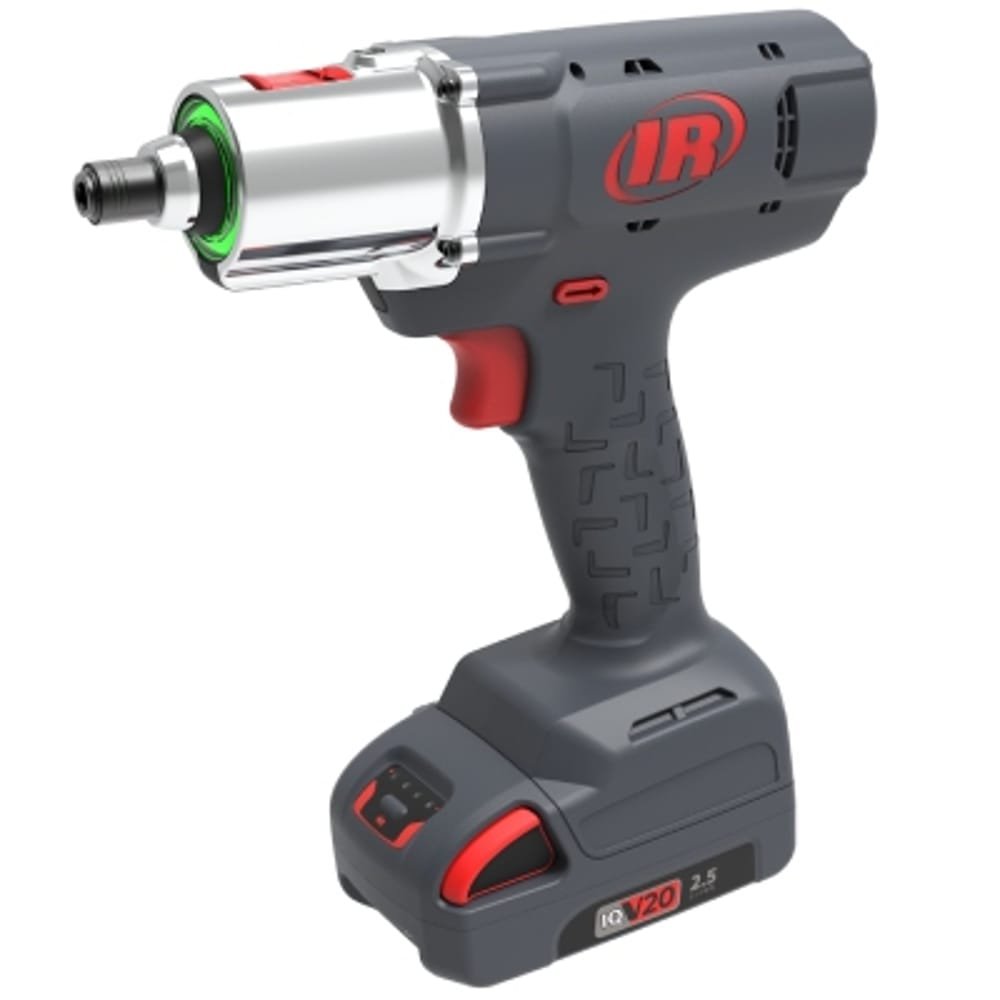

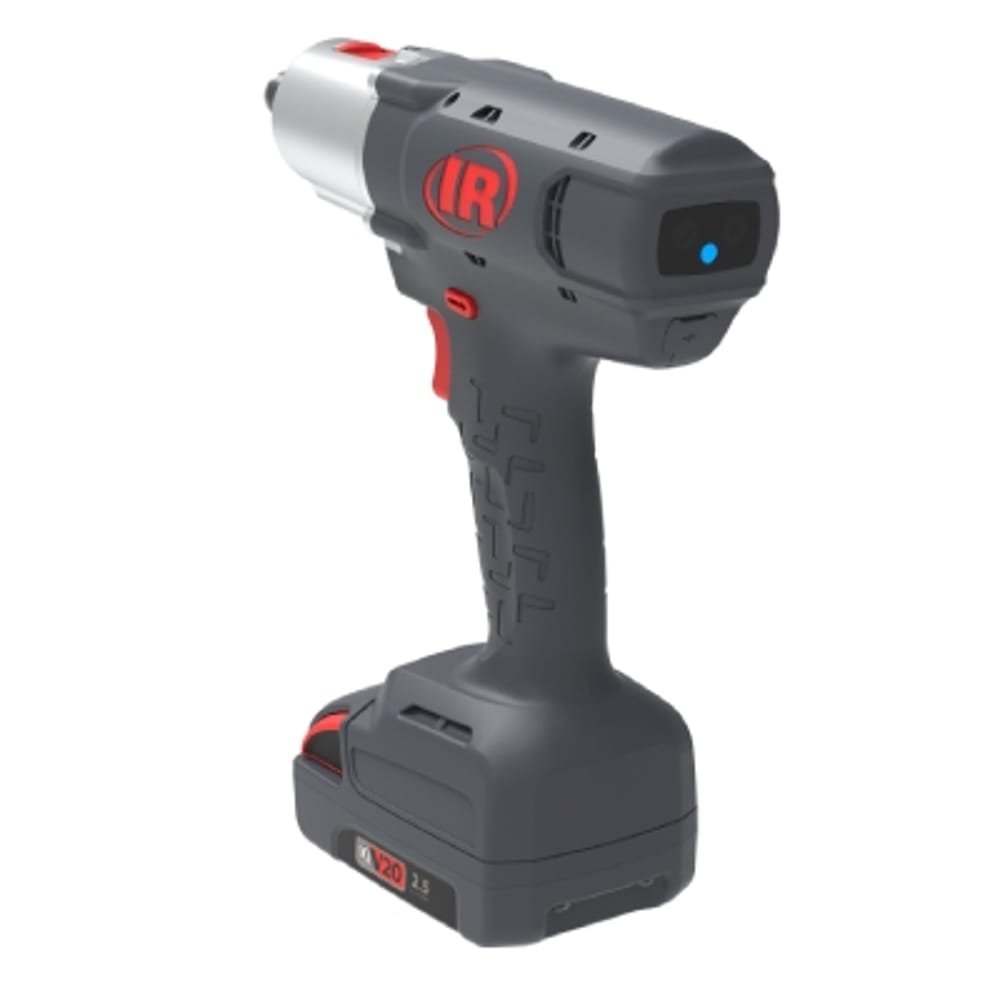

- The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece. Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality.
- Unlock faster and smarter tool configurations with programmable parameters, making it easy to meet specific application requirements.
- QC Series Clutch Tools are compatible with IQV20™ battery and charger platform, providing flexibility and reducing operational costs.
Durable
- Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.
Model Specifications
| Model | Tool Configuration | Drive | Torque Range (Nm) | Speed (rpm) | Weight lbs (kg) | Length in (mm) | Height in (mm) | Setup |
|---|---|---|---|---|---|---|---|---|
| QCP2P02Q4 | Pistol | 1/4″ Hex | 0.5 – 2 | 350 – 1160 | 2.3 (1.04) | 8.3 (210) | 8.2 (208.6) | Programmable |
| QCP2P04Q4 | Pistol | 1/4″ Hex | 1 – 4 | 350 – 1160 | 2.3 (1.04) | 8.3 (210) | 8.2 (208.6) | Programmable |
| QCP2P08Q4 | Pistol | 1/4″ Hex | 3 – 8 | 140 – 700 | 2.3 (1.04) | 8.3 (210) | 8.2 (208.6) | Programmable |
| QCP2P12Q4 | Pistol | 1/4″ Hex | 5 – 12 | 140 – 700 | 2.3 (1.04) | 8.3 (210) | 8.2 (208.6) | Programmable |
