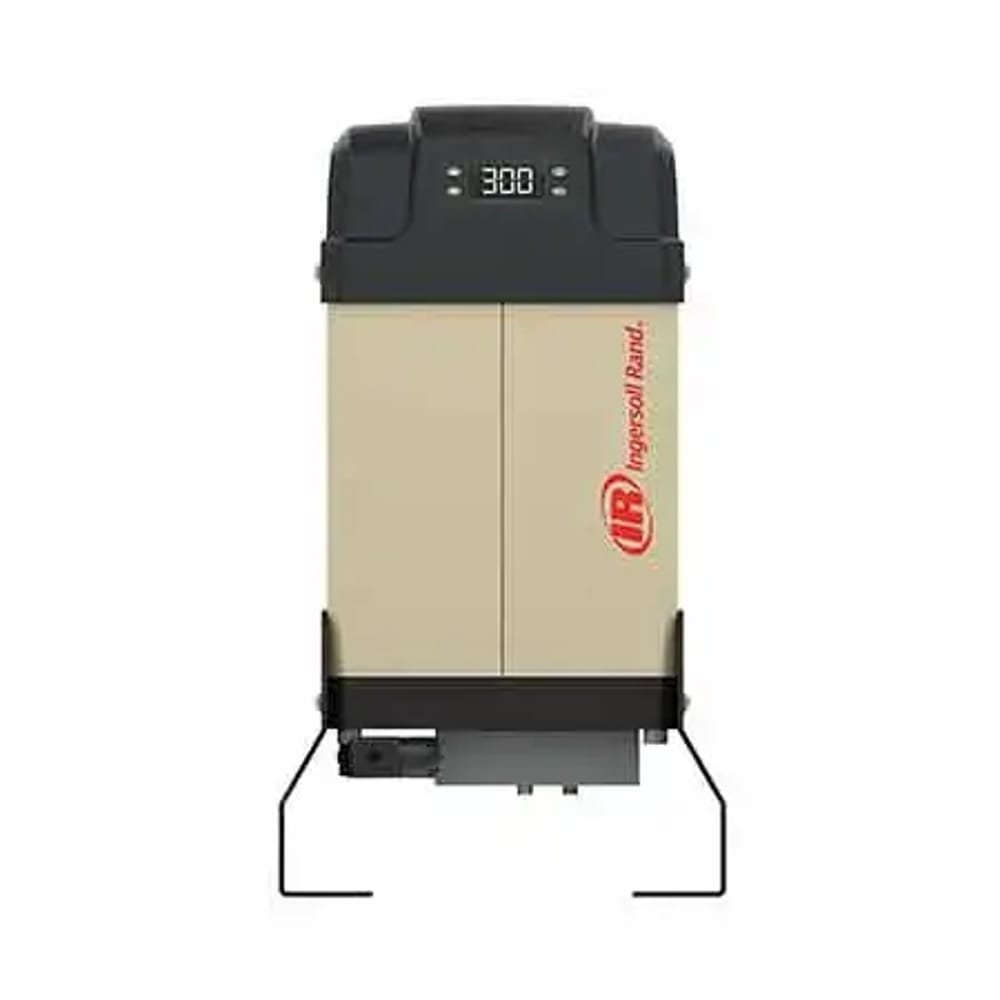

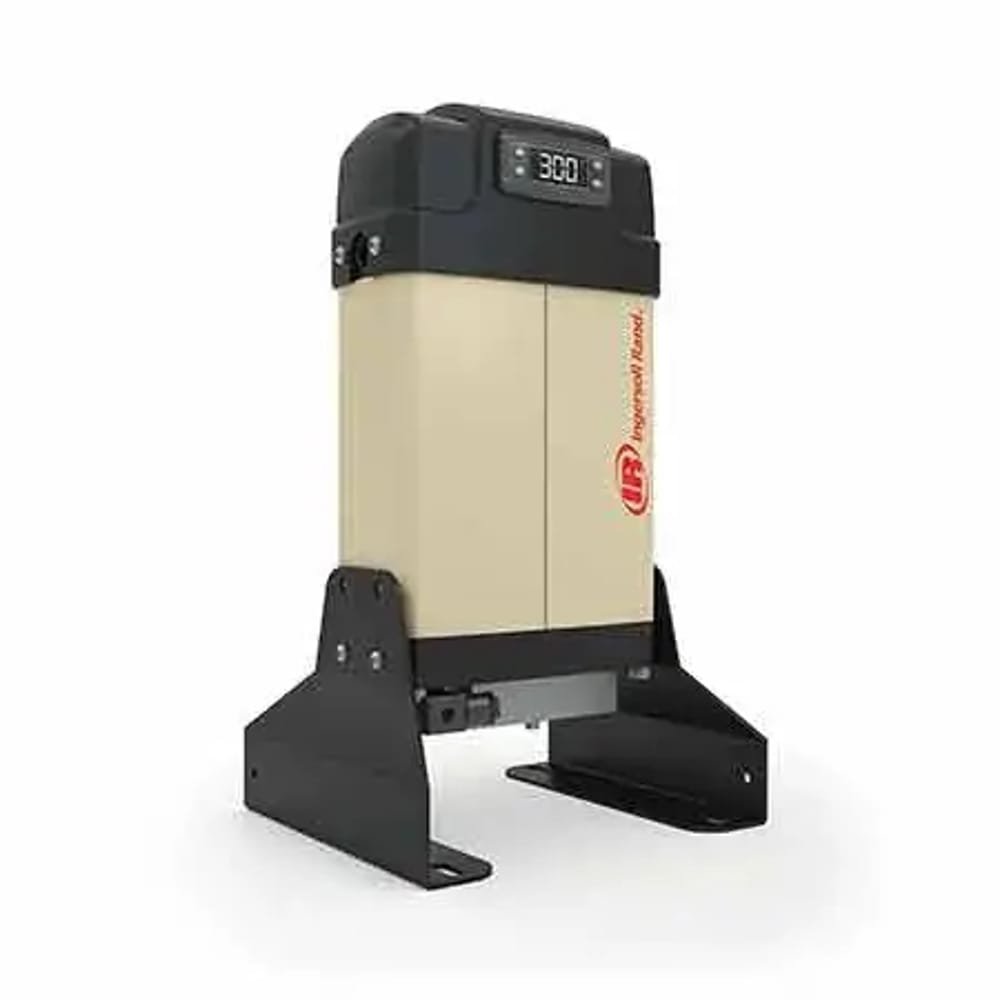

Features

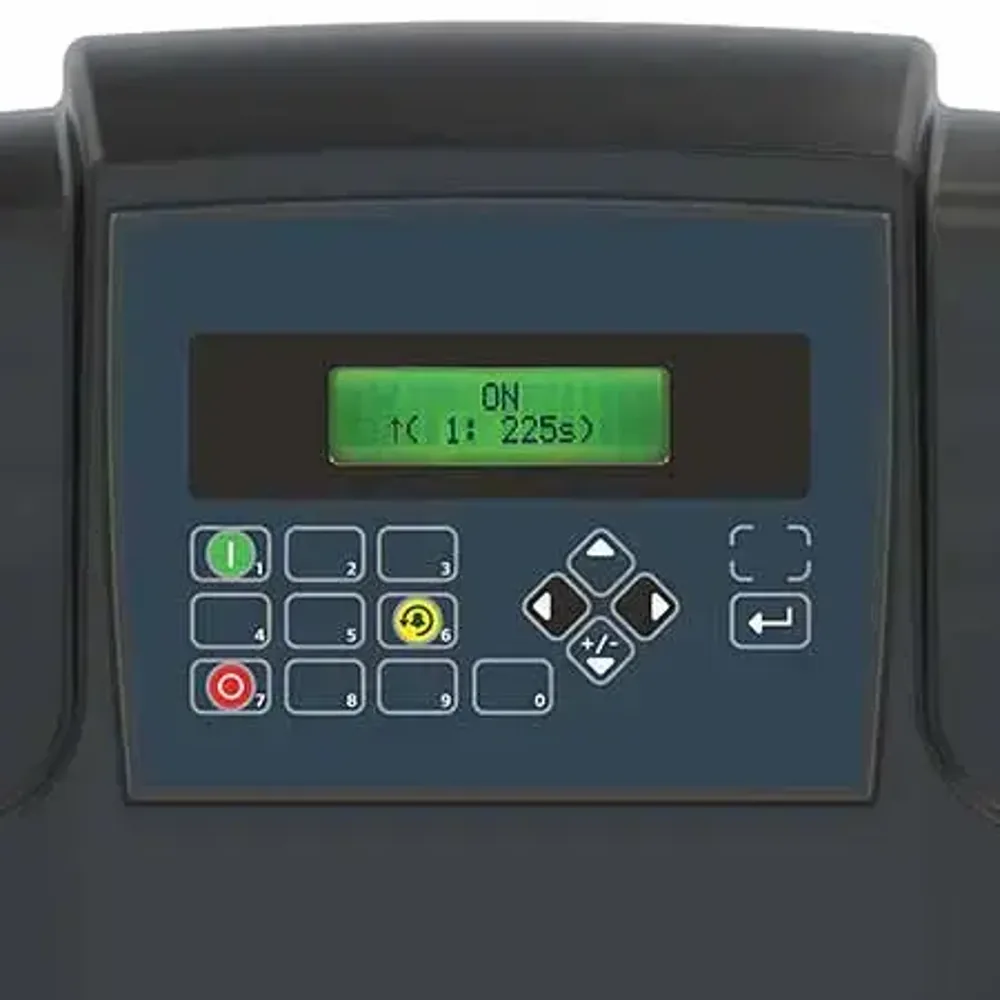

- High Air Quality:Â High-performance desiccant technology delivers ISO Class 2 or Class 1 pressure dew point air for critical applications; high efficiency pre-filter and general Purpose after-filter protect desiccant and downstream air from oil contamination and particulates.Reliable Operation:Â High-strength desiccant, durable valves and components and long cycles extend equipment life.Reduced Energy Use:Â Low pressure drop design saves on energy costs and provides an economical drying solution. Energy Management System option for further energy use reduction.State-of-the-Art Control:Â Easy to use, advanced microprocessor with visual display showing data in real time to maintain dryer performance at optimum levels, providing preventative maintenance alerts as well as protection notifications for efficiency and connectivity.Easy Installation and Maintenance:Â With a compact footprint and low noise operation, modular dryers are suitable to be quickly installed right in the work environment and easy maintained, with preventative maintenance alertsDrying process
- Compressed air stream with moisture enters the dryer from inlet valve, depending where the PLC sequence step is, this will be either the left or right column
- The compressed air gets dried going upward in the column through the desiccant media that adsorb water vapor
- From the exit valve, the dried air is delivered to the air system
Regenerating process- Simultaneously to drying the compressed air in the other column, a limited amount of dried air is passed from the upper outlet valve and expanded to atmospheric pressure through purge orifice housed within the valve, to the regenerating column
- This regeneration air flows downwards through the saturated desiccant of the other column and regenerates the desiccant by adsorbing the moisture
- The expanded regeneration air containing the adsorbed moisture is discharged through the exhaust solenoid valve and muffler
- The sphere in the valve and its position, right or left, determines which column is drying and regenerating. The movement of the sphere is driven by the pressure difference between the columns (pressure for drying column and atmospheric pressure for regenerating column) driven by exhaust solenoid valves in the bottom part of the dryers

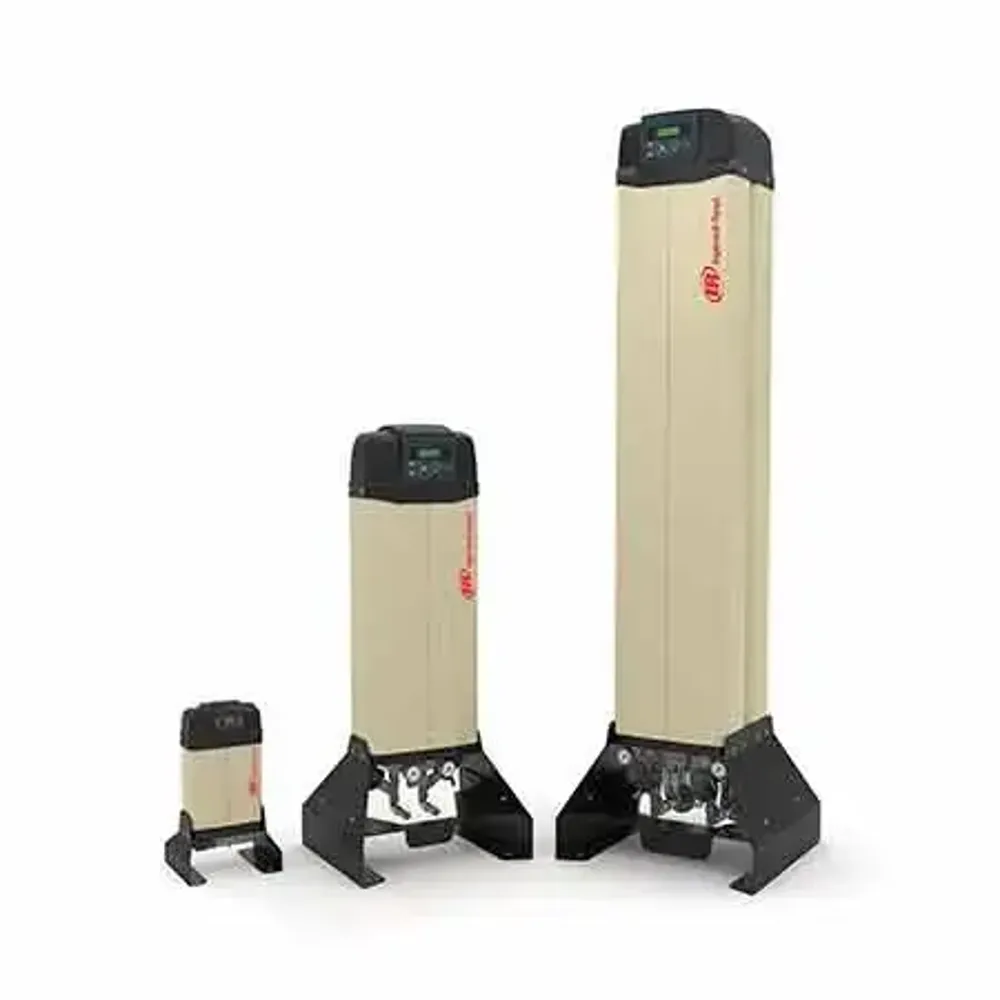

Specifications
CCN
Description
Capacity (m3/h/SCFM)
Max Operating Pressure BarG (psig)
Pressure Dew Point °C (°F)
Air in/out connection BSP (in)
Dimensions [W x D x H (mm) x Weight (kg)]
Power Supply (Volt/ph/Hz)
Desiccant per tower Kg (lb)
47675073001
DA5IM -40°F
5 (3)
14 (203)
-40 (-40)
(3/8″)
238 x 212 x 423 x 11
115/1/60
0.7 (1.5)
47675074001
DA15IM -40°F
15 (9)
14 (203)
-40 (-40)
(3/8″)
238 x 212 x 823 x 18
115/1/60
2.2 (4.7)
47675075001
DA25IM -40°F
25 (15)
14 (203)
-40 (-40)
(3/8″)
238 x 212 x 1073 x 27
115/1/60
3.0 (6.6)
47675076001
DA40IM -40°F
40 (24)
14 (203)
-40 (-40)
(3/4″)
475 x 405 x 968 x 44
115/1/60
6.4 (14.1)
47675077001
DA55IM -40°F
55 (32)
14 (203)
-40 (-40)
(3/4″)
475 x 405 x 1118 x 50
115/1/60
8.4 (18.4)
47675078001
DA70IM -40°F
70 (41)
14 (203)
-40 (-40)
(3/4″)
475 x 405 x 1318 x 60
115/1/60
10.9 (24.0)
47675079001
DA100IM -40°F
100 (59)
14 (203)
-40 (-40)
(1″)
475 x 405 x 1673 x 73
115/1/60
15.4 (33.9)
47675080001
DA150IM -40°F
150 (88)
14 (203)
-40 (-40)
(1″)
475 x 405 x 1873 x 90
115/1/60
18.0 (39.6)
47675081001
DA200IM -40°F
200 (118)
14 (203)
-40 (-40)
(1 1/2″)
536 x 495 x 1705 x 177
115/1/60
30.8 (67.9)
47675082001
DA250IM -40°F
250 (147)
14 (203)
-40 (-40)
(1 1/2″)
536 x 495 x 1905 x 180
115/1/60
35.9 (79.1)
47675083001
DA300IM -40°F
300 (177)
14 (203)
-40 (-40)
(1 1/2″)
536 x 495 x 1905 x 188
115/1/60
35.9 (79.1)
47677658001
DA40IM -40°F EMS
40 (24)
14 (203)
-40 (-40)
(3/4″)
475 x 405 x 968 x 44
115/1/60
6.4 (14.1)
47677659001
DA55IM -40°F EMS
55 (32)
14 (203)
-40 (-40)
(3/4″)
475 x 405 x 1118 x 50
115/1/60
8.4 (18.4)
47677660001
DA70IM -40°F EMS
70 (41)
14 (203)
-40 (-40)
(3/4″)
475 x 405 x 1318 x 60
115/1/60
10.9 (24.0)
47677661001
DA100IM -40°F EMS
100 (59)
14 (203)
-40 (-40)
(1″)
475 x 405 x 1673 x 73
115/1/60
15.4 (33.9)
47677662001
DA150IM -40°F EMS
150 (88)
14 (203)
-40 (-40)
(1″)
475 x 405 x 1873 x 90
115/1/60
18.0 (39.6)
47677663001
DA200IM -40°F EMS
200 (118)
14 (203)
-40 (-40)
(1 1/2″)
536 x 495 x 1705 x 177
115/1/60
30.8 (67.9)
47677664001
DA250IM -40°F EMS
250 (147)
14 (203)
-40 (-40)
(1 1/2″)
536 x 495 x 1905 x 180
115/1/60
35.9 (79.1)
47677665001
DA300IM -40°F EMS
300 (177)
14 (203)
-40 (-40)
(1 1/2″)
536 x 495 x 1905 x 188
115/1/60
35.9 (79.1)
47677702001
DA40IM -100°F
32 (19)
14 (203)
-40 (-100)
(3/4″)
475 x 405 x 968 x 44
115/1/60
6.4 (14.1)
47677703001
DA55IM -100°F
44 (26)
14 (203)
-40 (-100)
(3/4″)
475 x 405 x 1118 x 50
115/1/60
8.4 (18.4)
47677704001
DA70IM -100°F
56 (33)
14 (203)
-40 (-100)
(3/4″)
475 x 405 x 1318 x 60
115/1/60
10.9 (24.0)
47677705001
DA100IM -100°F
80 (47)
14 (203)
-40 (-100)
(1″)
475 x 405 x 1673 x 73
115/1/60
15.4 (33.9)
47677706001
DA150IM -100°F
120 (71)
14 (203)
-40 (-100)
(1″)
475 x 405 x 1873 x 90
115/1/60
18.0 (39.6)
47677707001
DA200IM -100°F
160 (94)
14 (203)
-40 (-100)
(1 1/2″)
536 x 495 x 1705 x 177
115/1/60
30.8 (67.9)
47677708001
DA250IM -100°F
200 (118)
14 (203)
-40 (-100)
(1 1/2″)
536 x 495 x 1905 x 180
115/1/60
35.9 (79.1)
47677709001
DA300IM -100°F
240 (141)
14 (203)
-40 (-100)
(1 1/2″)
536 x 495 x 1905 x 188
115/1/60
35.9 (79.1)
