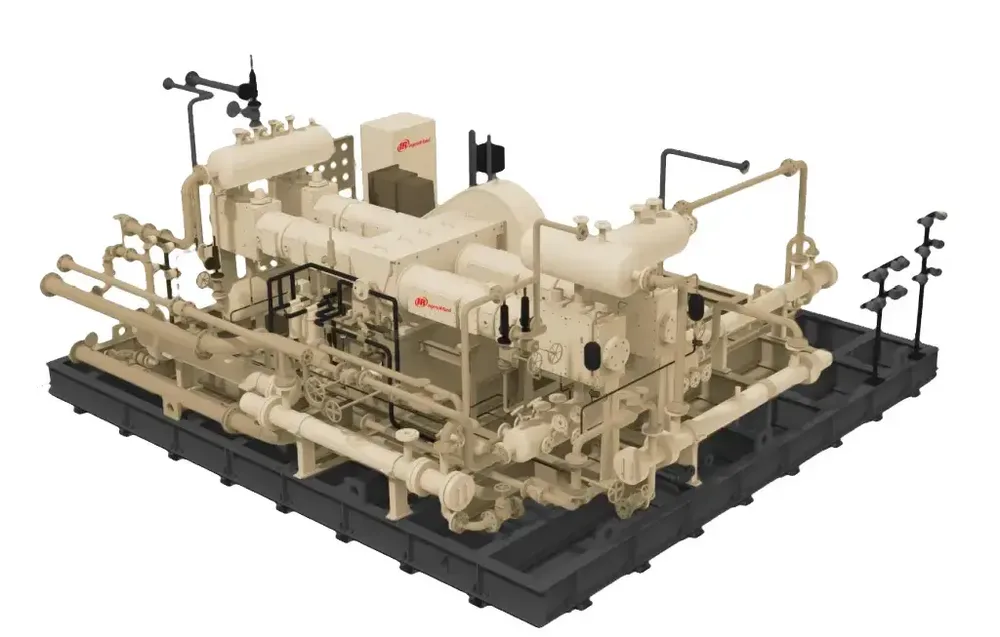

HSE4 Hydrogen Compressors

The HSE4 series is a powerhouse in Ingersoll Rand’s hydrogen compressor range, boasting a 620 kW rating for high-volume hydrogen compression. It effectively processes up to 3,500 m³/hr at atmospheric inlet pressure and can increase to 12,000 Nm³/hr with boosted inlets from various electrolyser types or SMR sources. Suited for large-scale electrolyser installations over 10 MW, the HSE4 is suitable for pipeline, chemical, and industrial uses. Its horizontal, four-cylinder layout ensures steady operation, while double-acting cylinders in each stage maximize flow rate.

Request A Quote

Features

High-Volume Capacity: With a significant flow range, these compressors are designed for the needs of large-scale hydrogen production.
Maximum Pressure Delivery: Capable of achieving 200 bar, suitable for a variety of demanding applications.
Optimized Design: The horizontal, four-cylinder layout provides stable and balanced performance.
Flexible Operation: Double-acting cylinders maximize flow rates and adaptability to different operational modes.
Standards Compliance: Meet API and ATEX standards, with CE marking available, ensuring adherence to stringent industry regulations.
Power and Efficiency: A 620 kW rating highlights the compressors’ ability to operate at high capacities while maintaining efficiency.

Technical Data

Layout	Maximum Stages	Stroke	Speed Range	Maximum Discharge Pressure	Flow Range	Rated Power
Horizontal	4	9”	350-514 rpm	200 bar	1,500 to 3,500 m³/hr, up to 12,000 Nm³/hr with a boosted inlet	620 kW
