Features
Ergonomic:
- Ingersoll Rand aluminum rails offer less than 1% of rolling effort. Bronze bearings allow an easy and smooth rotation
Precision:
- Made from precision Ingersoll Rand aluminum rail, resulting in a lightweight, easy-to-move boom with low rolling resistance for smooth travel and accurate positioning
Cost Effective:
- Jib cranes are an inexpensive solution for short transfer applications

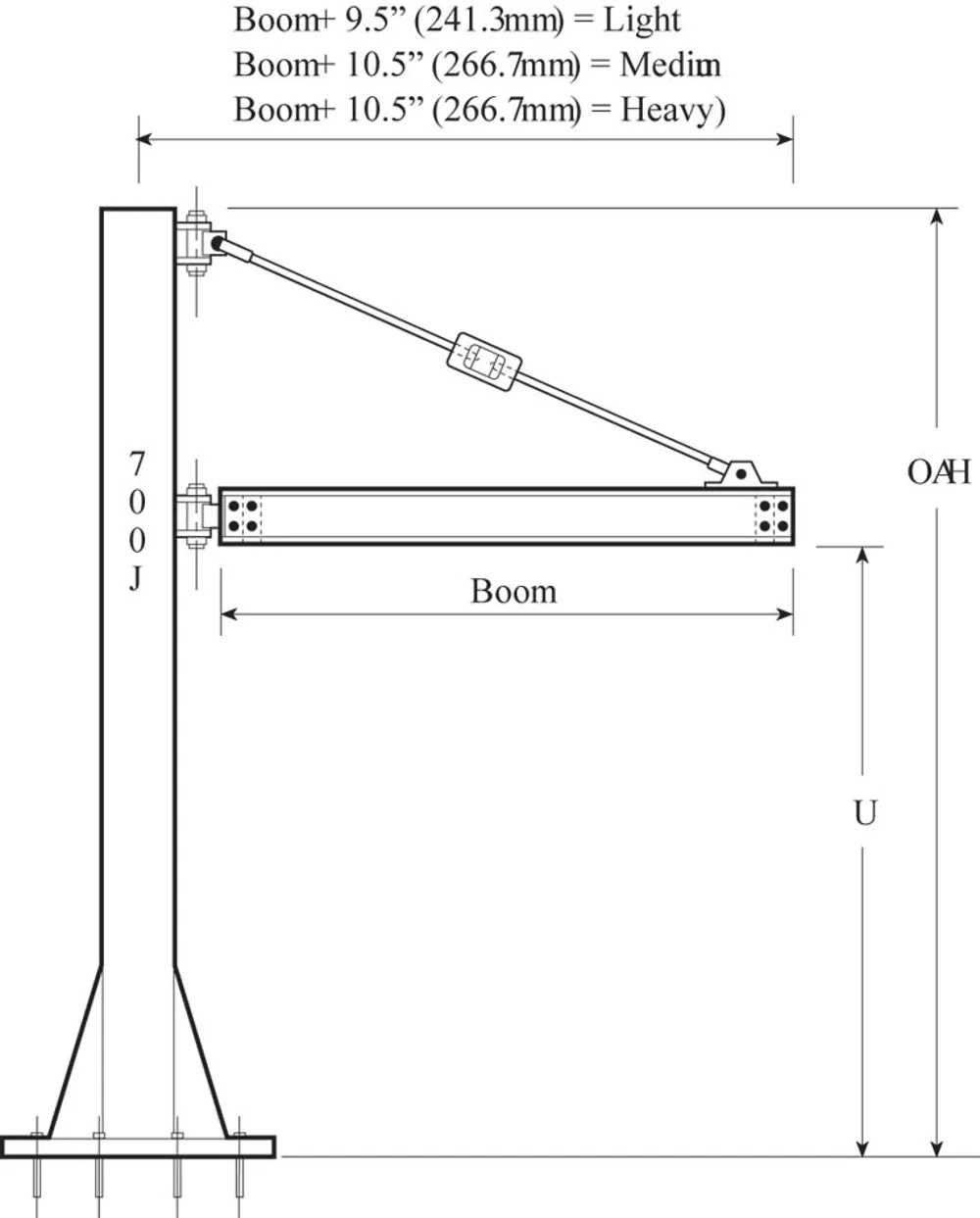

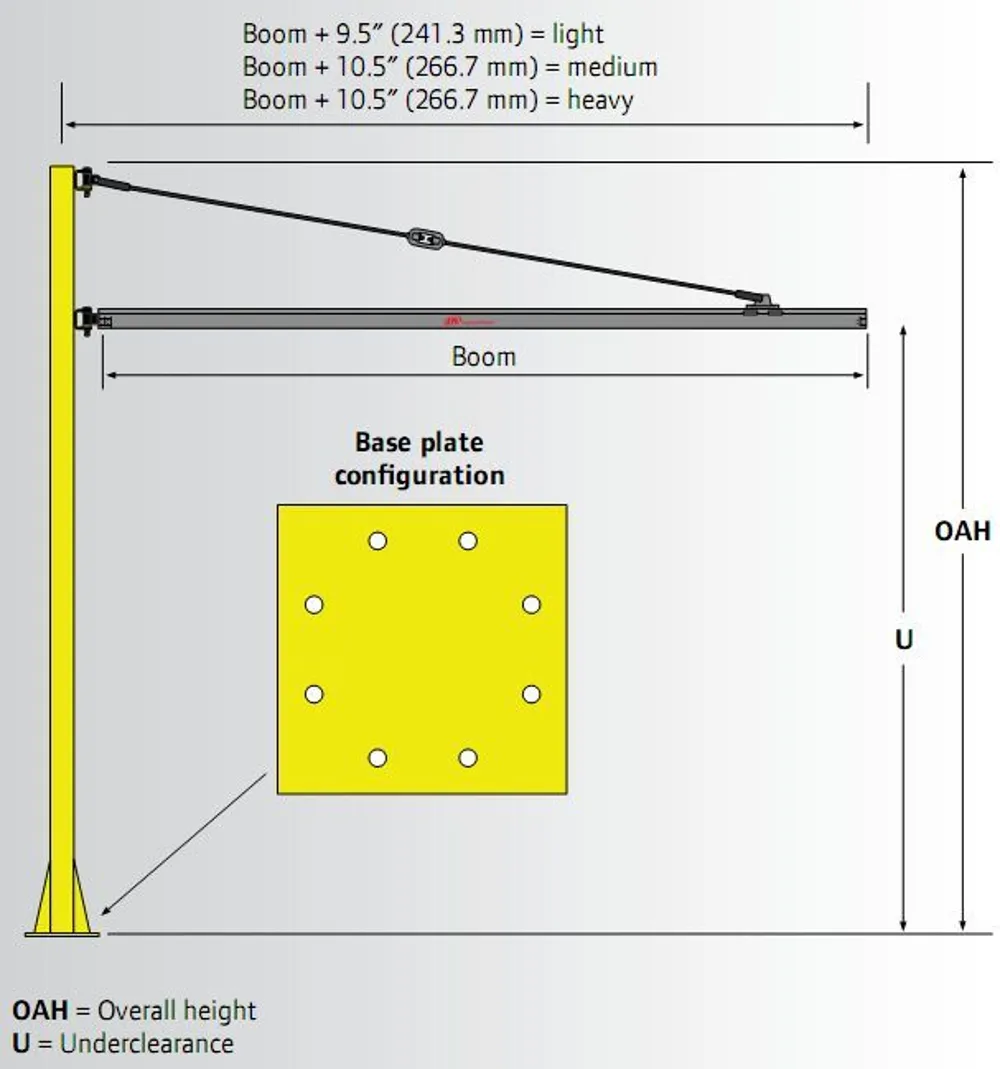

Model Specifications
ModelName | OAH = U + (mm) | OAH = U + (in.) | Weight (lbs) | Boom (m) | Capacity (kg) | Capacity (lbs) | Boom (ft.) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
7016JA1F20144 | 965 | 38 | 439 | 6.1 | 72.6 | 160 | 20 | 199.5 |
7020JA1F18144 | 965 | 38 | 431 | 5.49 | 90.7 | 200 | 18 | 195.9 |
7023JA1F16144 | 965 | 38 | 423 | 4.88 | 104.3 | 230 | 16 | 192.3 |
7026JA1F14144 | 965 | 38 | 414 | 4.27 | 117.9 | 260 | 14 | 188.2 |
7030JA1F12144 | 965 | 38 | 407 | 3.66 | 136.1 | 300 | 12 | 185 |
7037JA1F10144 | 965 | 38 | 399 | 3.05 | 167.8 | 370 | 10 | 181.4 |
7046JA1F08144 | 965 | 38 | 391 | 2.44 | 208.7 | 460 | 8 | 177.7 |
7061JA1F06144 | 965 | 38 | 383 | 1.83 | 267.7 | 610 | 6 | 174.1 |
7090JA1F04144 | 965 | 38 | 375 | 1.22 | 408.2 | 900 | 4 | 170.5 |
ModelName | OAH = U + (mm) | OAH = U + (in.) | Weight (lbs) | Boom (m) | Capacity (kg) | Capacity (lbs) | Boom (ft.) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
7040JA2F20144 | 991 | 39 | 812 | 6.1 | 181.4 | 400 | 20 | 369.1 |
7045JA2F18144 | 991 | 39 | 797 | 5.49 | 204.1 | 450 | 18 | 362.3 |
7050JA2F16144 | 991 | 39 | 782 | 4.88 | 226.8 | 500 | 16 | 355.5 |
7060JA2F14144 | 991 | 39 | 735 | 4.27 | 272.2 | 600 | 14 | 334.1 |
7070JA2F12144 | 991 | 39 | 720 | 3.66 | 317.5 | 700 | 12 | 327.3 |
7080JA2F10144 | 991 | 39 | 705 | 3.05 | 362.9 | 800 | 10 | 320.5 |
7105JA2F08144 | 991 | 39 | 690 | 2.44 | 476.3 | 1050 | 8 | 313.6 |
7140JA2F06144 | 991 | 39 | 675 | 1.83 | 635 | 1400 | 6 | 306.8 |
7200JA2F04144 | 991 | 39 | 660 | 1.22 | 907.2 | 2000 | 4 | 300 |
